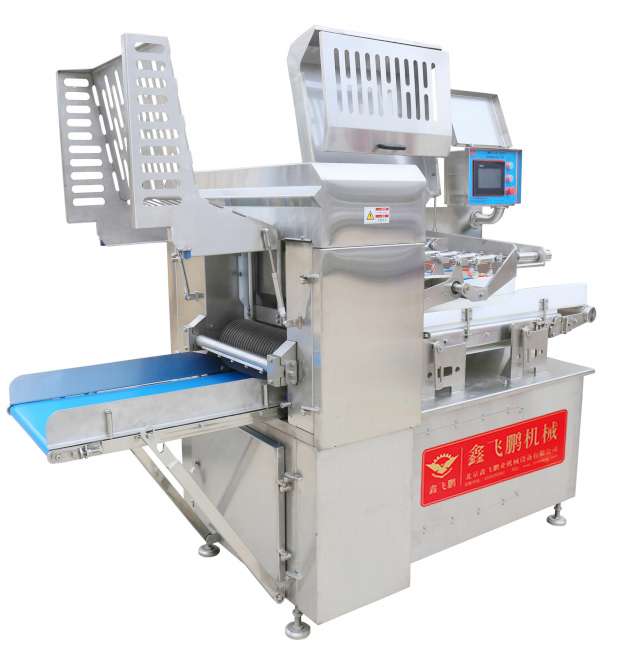

XFP-430-2D (2 Dimensions) Frozen Meat Dicer (Continuous Feeding)

Four independent upper pressing conveyor belts, each belt pressing force adopts mechanical and pneumatic cooperation.
PLC touch screen intelligent control can effectively save labor. Two feeding modes are optional: step and continuous feeding with adjustable speed.
The feeding structure adopts the upper and lower pressing feeding belts driven by a servo drive. The feeding speed is precise and can be adjusted arbitrarily from 5-100mm, which realizes continuous feeding and cutting. The front end can be equipped with a slicer with a conveying structure. To the feeding belt of the machine, it can realize automatic production.

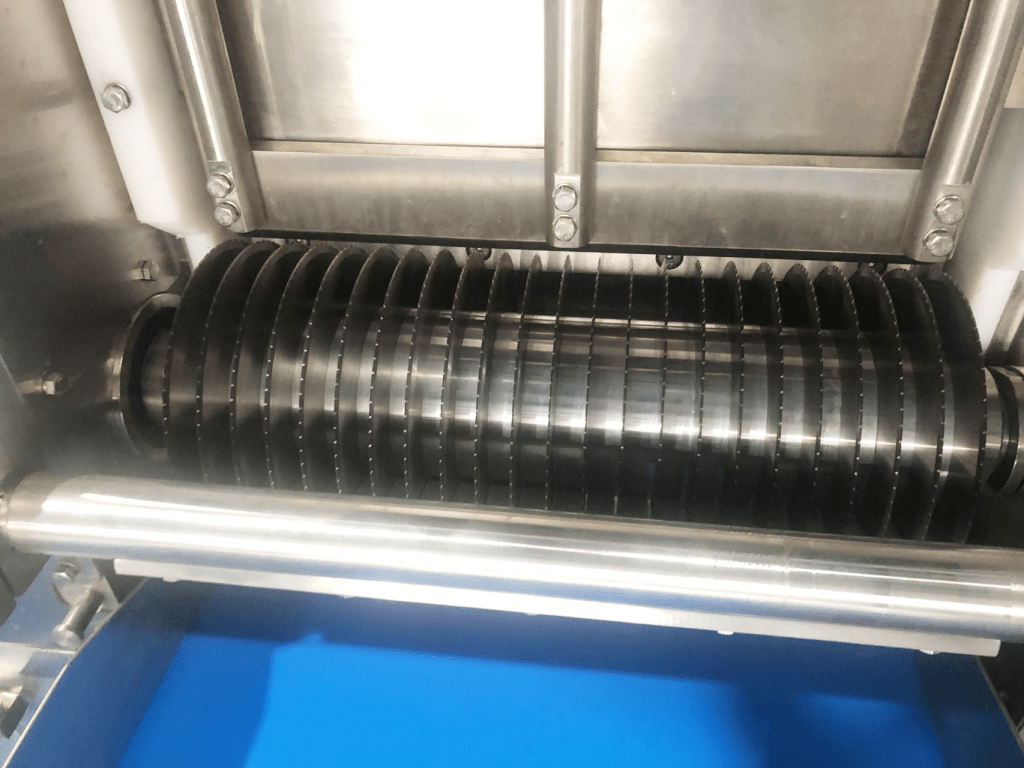

International advanced cutting motion mode – Four-guide column linear positioning motion cutting structure， After slicing into strips, the strips are cut into cubes by the round cutter.
Advanced feeding structure – the upper and lower conveyor belts convey materials, and the contact surface between the upper pressing belt and the material is always kept parallel.
Flexible disassembly – the feeding plate can be disassembled and cleaned directly by hand.
Cleaning method – direct cleaning with a water gun.
Safety Device – Inductive Automatic Circuit Break.
Use – Frozen meat strips, cubes processing.
