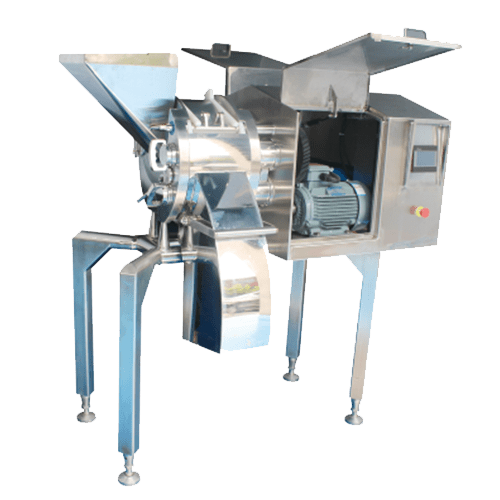

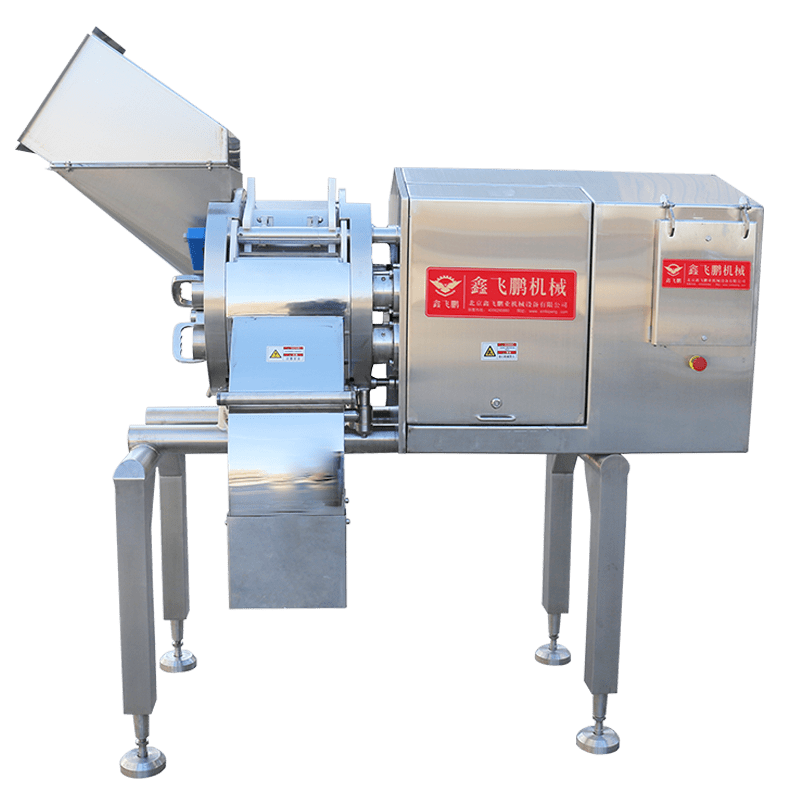

3-Dimensions Frozen Meat Dicer
XFP-300/440 3D
introduction:
- SUS304 stainless steel structure, advanced waterproof treatment.
- High-power and high-speed precision meat cutting machine, three-dimensional centrifugal working principle, large silo, continuous feeding,
- PLC touch screen, more convenient and safe control, frequency conversion control, and speed adjustment can be realized according to product requirements.
Features:
- Double motor reducer, large cutting power, adjustable speed to achieve the best cutting effect.
- The motor is driven by gear and chain, more stable and has strong impact resistance.
- The blade imported from Germany has higher durability and a better cutting effect.
- The Cutter is fixed by the double-sided support frame (non-suspension fixed), which is more stable and durable and has high impact resistance.
- Cutter removal without tools. It is more convenient to operate, and easy to clean, repair, and maintain. Inverter motor, CNC control panel.
Performance
- Advanced Cutter set disassembly method – free hand disassembly without any tools.
- Cleaning method – direct cleaning with a water gun.
- Safety Devices – Inductive Automatic Circuit Break.
- Uses – Frozen meat diced, small strips, slice processing.
Technical Features:
| Model | XFP-440 3D | XFP-300 3D |
|---|---|---|
| Material | SUS 304SS | SUS 304SS |
| Diamension | 2100*1300*2100mm | 1410*760*1208mm |
| Power | 14.5KW | 7KW |
| Inner Drum Diameter | 440mm | 300mm |
| Max.Feeding Diameter | 200mm | 100mm |
| Cutting Size | 3-20mm Customized | 3-10mm Customized |
| Thickness Adjustable Method | Touch Screen | Manually |
| Capacity | 1000-2000kg/h | 500-1000kg/h |
| Slicing Temperature | -10℃ - 0℃ | -10℃ - 0℃ |
| Recommend Slice Temp. | -6℃ - -5℃ | -6℃ - -5℃ |
| Voltage | 380V,50HZ | 380V,50HZ |
| Weight | 1500kg | 450kg |
